- Oceancartz Electric Refrigerated Utility Cart with 1500kg Payload and 72V 200Ah Battery
Oceancartz Electric Refrigerated Utility Cart with 1500kg Payload and 72V 200Ah Battery
Share:
Hurry up! Only 3 item(s) items left in stock
Couldn't load pickup availability
Delivery completed within: 3 to 6 days from payment confirmation
Contact us on Phone for discounts, quotations, and datasheets.
Free shipping and returns
- Highlights
- Features & Specifications
- Performance & Comfort
- Why Choose This Product
- Warranty and Service
- 1500 kg maximum payload capacity
- Thermal-insulated cargo box with chilling to ≤10° Celsius
- 5.0kW AC electric motor
- 72V 200Ah maintenance-free gel battery system
- 100–120 km driving range per full charge
- 25% maximum climbing gradeability
- Front and rear leaf spring suspension
- Motor: 5.0kW AC electric motor
- Battery: 72V 200Ah maintenance-free gel battery

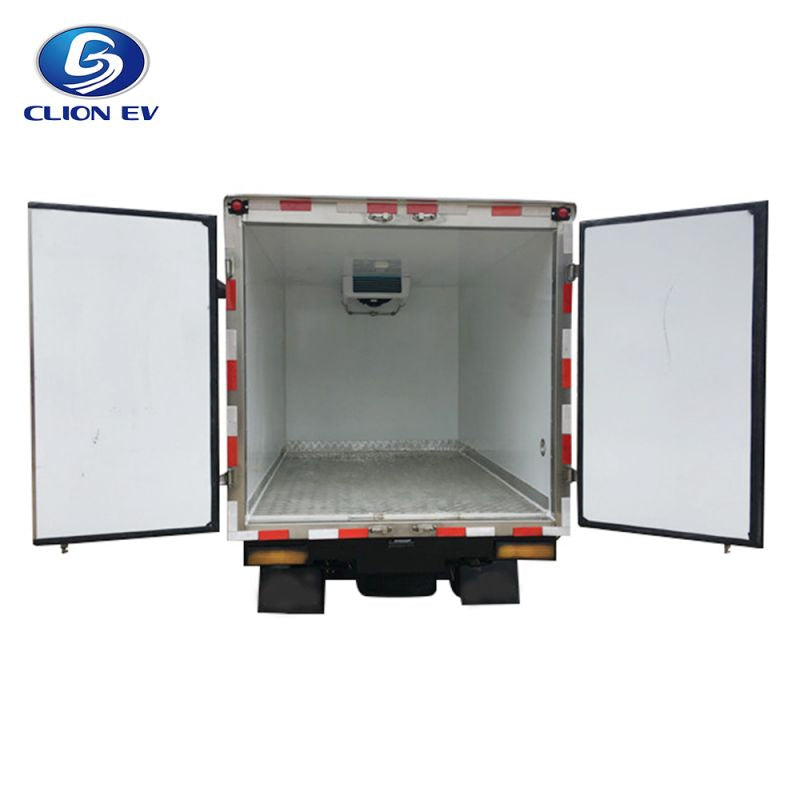

- Cargo Box Dimensions: 2.3 m × 1.5 m × 1.5 m
- Payload Capacity: 800–1500 kg
- Refrigeration Temperature: ≤10° Celsius
- Brakes: Four-wheel hydraulic drum brakes
- Suspension: Front and rear leaf springs
- Tires: Standard commercial-grade tires
- Ground Clearance: 220 mm
- Top Speed: 45–50 km/h
- Charging Time: Dependent on standard 72V charging cycles
- Frame: High-strength steel chassis
- Torque Output: The 5.0kW AC motor provides torque for hauling loads up to 1.5 tons.
- Operational Range: The 72V 200Ah battery system supports ranges up to 120 km between charging cycles.
- Ride Stability: Dual-axle leaf spring suspension is calibrated to stabilize the vehicle during heavy cargo transport.
- Incline Navigation: Gradeability of 25% allows for operation on ramps and sloped terrain.
- Operator Environment: Two-passenger cabin available with optional Electric Power Steering (EPS) and air conditioning.
- Ground Access: 220 mm ground clearance facilitates movement over uneven private facility surfaces.
This Oceancartz utility cart is configured for high-capacity chilled logistics on private property. The 5.0kW AC motor and 72V gel battery system provide the torque and energy capacity required for 1500 kg payloads and ranges up to 120 km. The thermal-insulated box maintains a temperature-controlled environment for perishable cargo. Structural durability is provided by a high-strength steel chassis and full leaf spring suspension, which are engineered to handle the maximum rated load. The maintenance-free battery technology eliminates the requirement for routine watering.
- 5 Years Battery Warranty
- 2 Year Motor and Controller Warranty
- 1 Year On-Site Free Service
For exact warranty details, please contact us. We will send you a quotation specifying the exact warranty.
Frequently Asked Questions
Oceancartz Electric Refrigerated Utility Cart with 1500kg Payload and 72V 200Ah Battery
How effective is the cooling system on the Oceancartz Refrigerated Electric Golf Cart?
Can this utility golf cart really handle a 1.5-ton load while driving up inclines?
What is the driving range on a single charge, and does the refrigeration unit drain the battery?
How maneuverable is this refrigerated van in tight urban or warehouse spaces?
What are the maintenance requirements for the Oceancartz refrigerated golf buggy?
