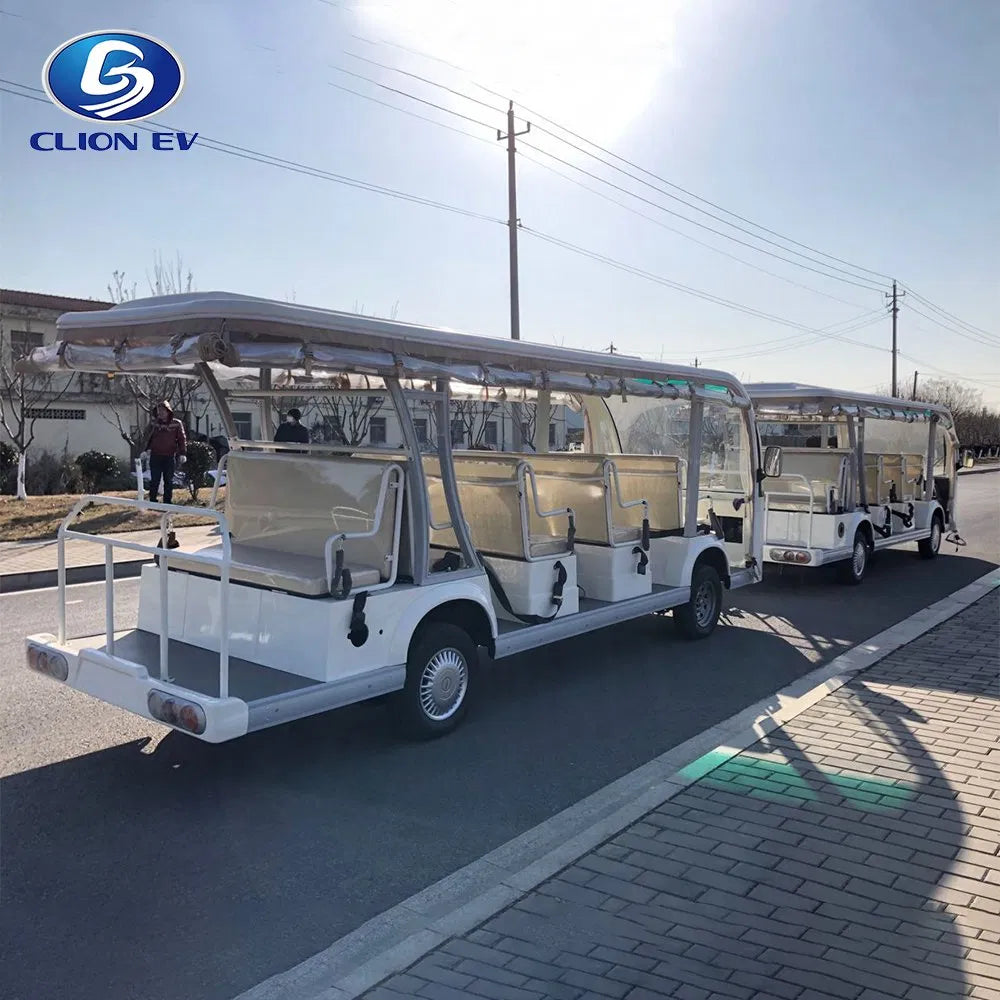

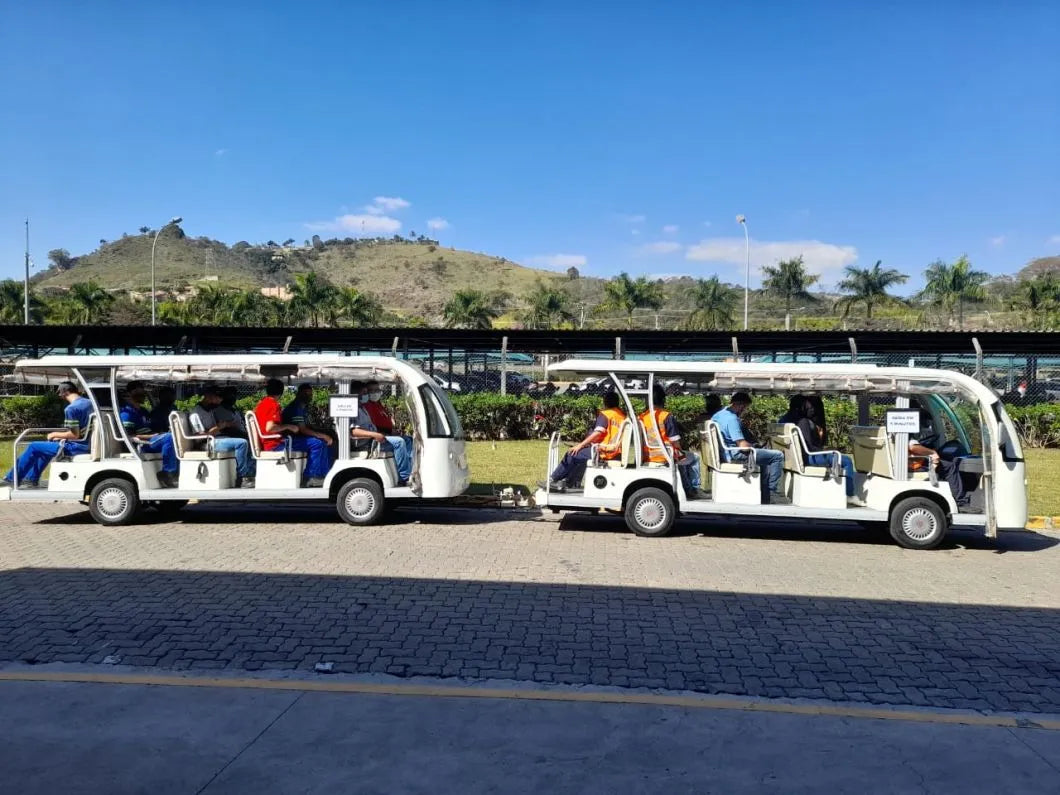

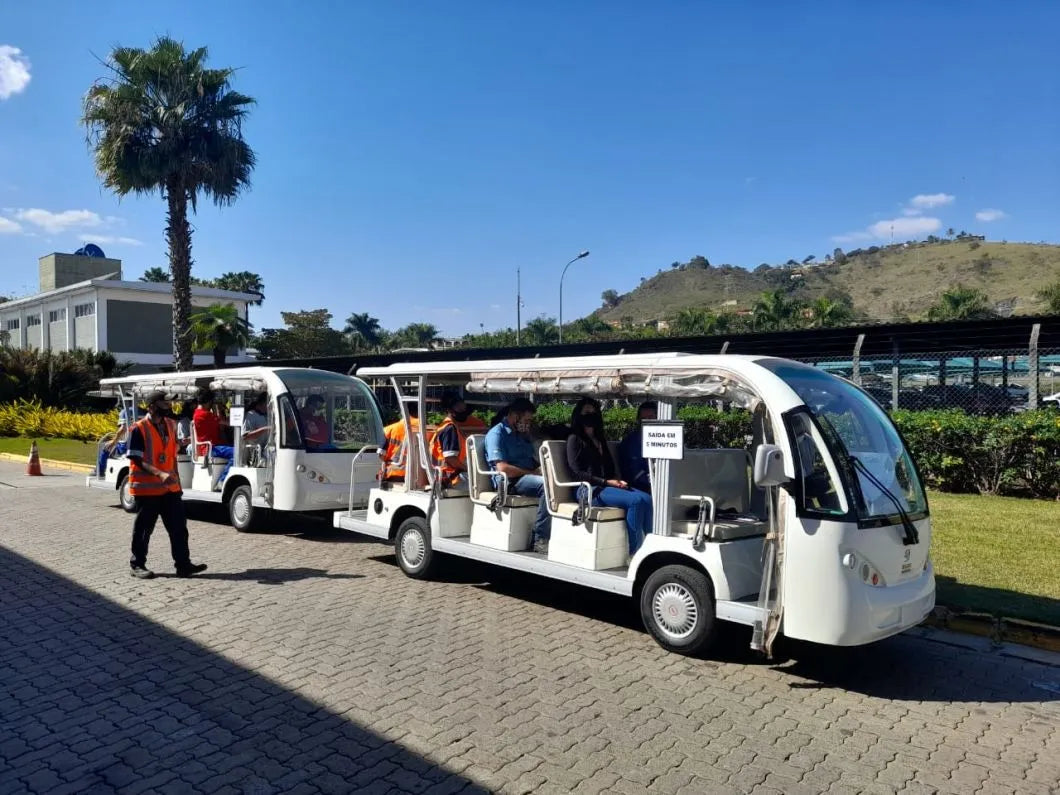

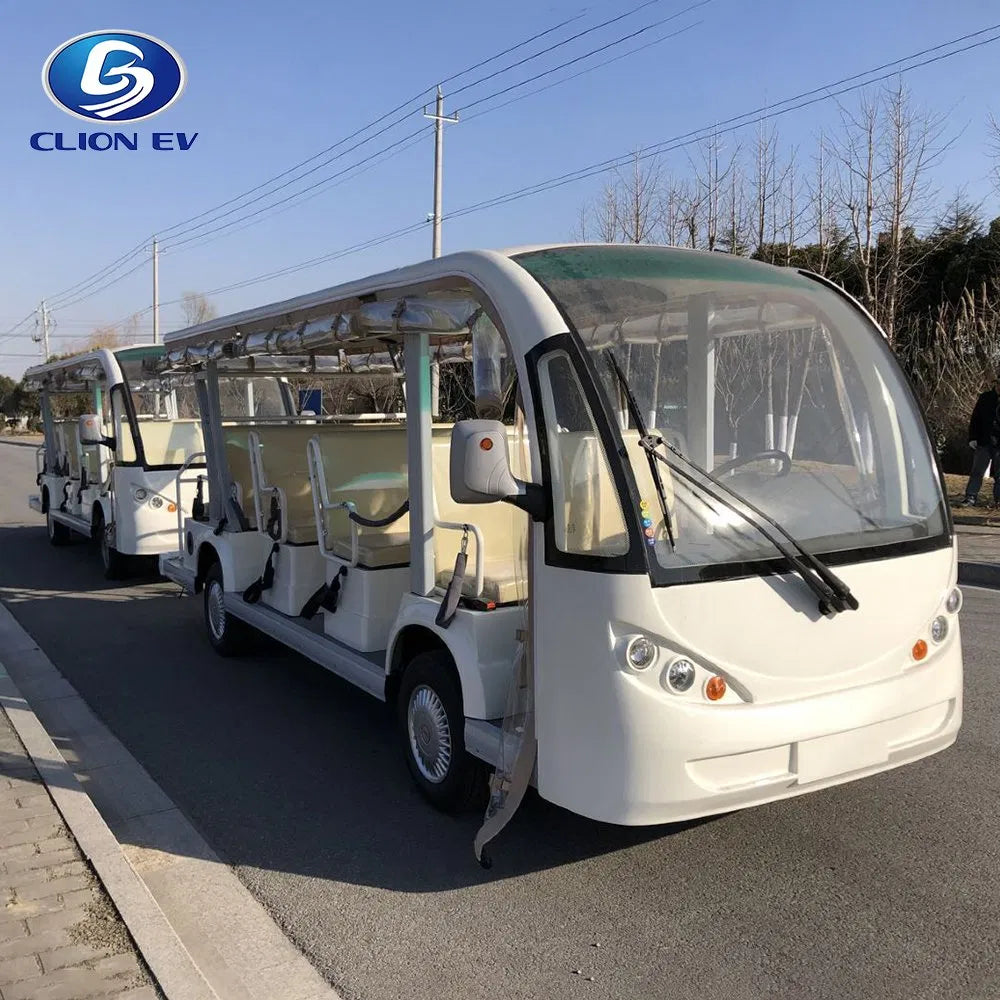

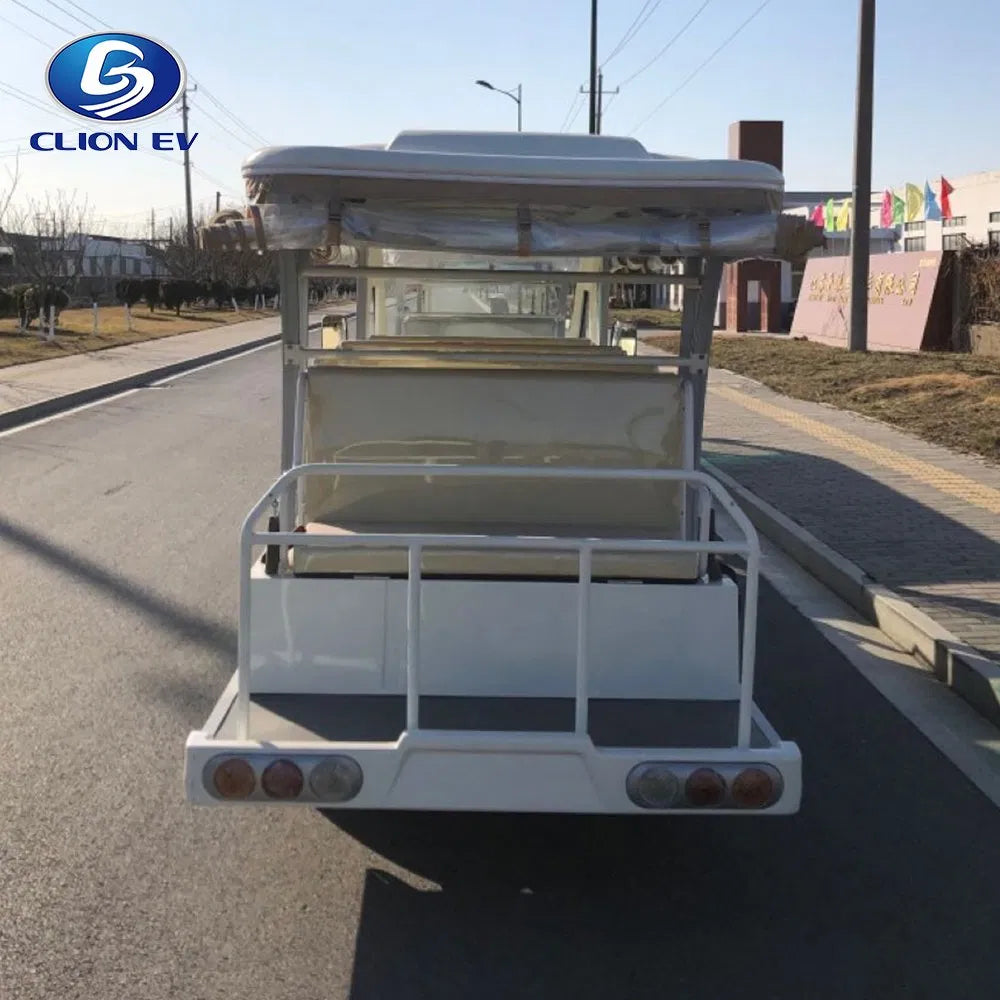

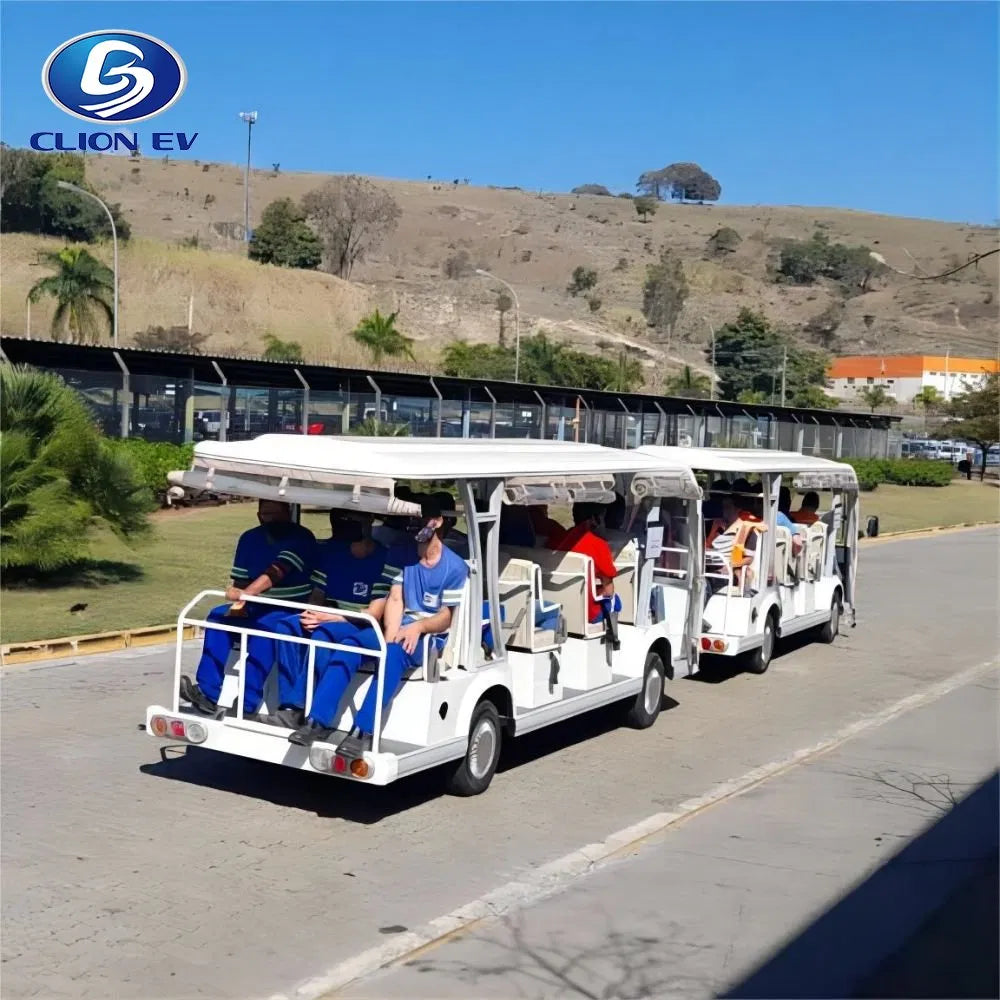

Oceancartz 28-Seater 72V 7.5kW Electric Sightseeing Shuttle Train
Share:
Hurry up! Only 9 item(s) items left in stock
Couldn't load pickup availability
Delivery completed within: 3 to 6 days from payment confirmation
Contact us on Phone for discounts, quotations, and datasheets.
Free shipping and returns
- Highlights
- Features & Specifications
- Performance & Comfort
- Why Choose This Product
- Warranty and Service
- 28-passenger capacity in a two-car configuration
- 7.5kW 72V electric motor
- Two 72V 200Ah lead-acid gel battery groups
- 35 km/h maximum operational speed
- 6-hour battery recharge time
- Electric Power Steering (EPS) and 6-meter turning radius
- 20% maximum gradeability
- Motor: 7.5kW, 72V electric motor
- Battery: 2 x 72V 200Ah lead-acid gel battery groups
- Charging Time: 6 hours via off-board charger
- Seating Capacity: 28 passengers
- Configuration: 2-car trackless shuttle train
- Max Speed: 35 km/h
- Climbing Ability: 20% grade
- Braking System: Dual-circuit hydraulic drum brakes with assist
- Steering: Electric Power Steering (EPS)
- Suspension: Independent Front / Steel Spring Rear
- Dimensions: Approximately 10.54 m total length
- Turning Radius: 6 meters
- Weight: 2440 kg
- Seating: Padded leather with 2-point safety belts
- Finish: Baked-enamel steel body
- Audio: MP3 radio and loudspeaker system
- Incline Handling: The 7.5kW motor provides torque to manage 20% gradients with a full passenger load.
- Directional Control: EPS and a 6-meter turning radius facilitate navigation of the 10.54-meter vehicle.
- Ride Stabilization: Independent front suspension and steel spring rear suspension absorb surface irregularities.
- Seating Configuration: 28 padded leather seats provide uniform passenger orientation across two cars.
- Deceleration Control: Hydraulic drum brakes with power assist provide stopping power for the 2440 kg total unit weight.
- Battery Management: Dual battery groups support operational cycles with a 6-hour recharge window.
This Oceancartz vehicle provides group transportation with a 28-passenger two-car configuration. The 7.5kW 72V motor and dual 200Ah gel battery groups support a 35 km/h speed and 20% gradeability. Technical features include Electric Power Steering for directional management and a 6-meter turning radius for operation in restricted venue pathways. Structural durability is provided by a steel body with a baked-enamel finish and a dual suspension system. Safety components include four-wheel hydraulic brakes with assist and 2-point safety belts for all occupants. Onboard audio and a 6-hour recharge cycle facilitate daily shuttle operations in commercial environments.
- 5 Years Battery Warranty
- 2 Year Motor and Controller Warranty
- 1 Year On-Site Free Service
For exact warranty details, please contact us. We will send you a quotation specifying the exact warranty.
Frequently Asked Questions
Oceancartz 28-Seater 72V 7.5kW Electric Sightseeing Shuttle Train
How does the 28-passenger seating layout work, and is it comfortable for a full load?
Is a vehicle of this size difficult to maneuver in tight spaces or winding resort paths?
Can the 7.5kW motor handle steep inclines when the shuttle is at its full 2,440 kg capacity?
What is the battery range, and how quickly can a vehicle of this size be recharged?
What safety and entertainment features are included for guided sightseeing tours?
