Oceancartz 2-Passenger Electric Utility Golf Cart with Patient Stretcher, 3.7 kW DC Motor, and 48V Battery System
Share:
Hurry up! Only 3 item(s) items left in stock
Couldn't load pickup availability
Delivery completed within: 3 to 6 days from payment confirmation
Contact us on Phone for discounts, quotations, and datasheets.
Free shipping and returns
- Highlights
- Features & Specifications
- Performance & Comfort
- Why Choose This Product
- Warranty and Service
- Accommodates 2 personnel seats and 1 patient stretcher

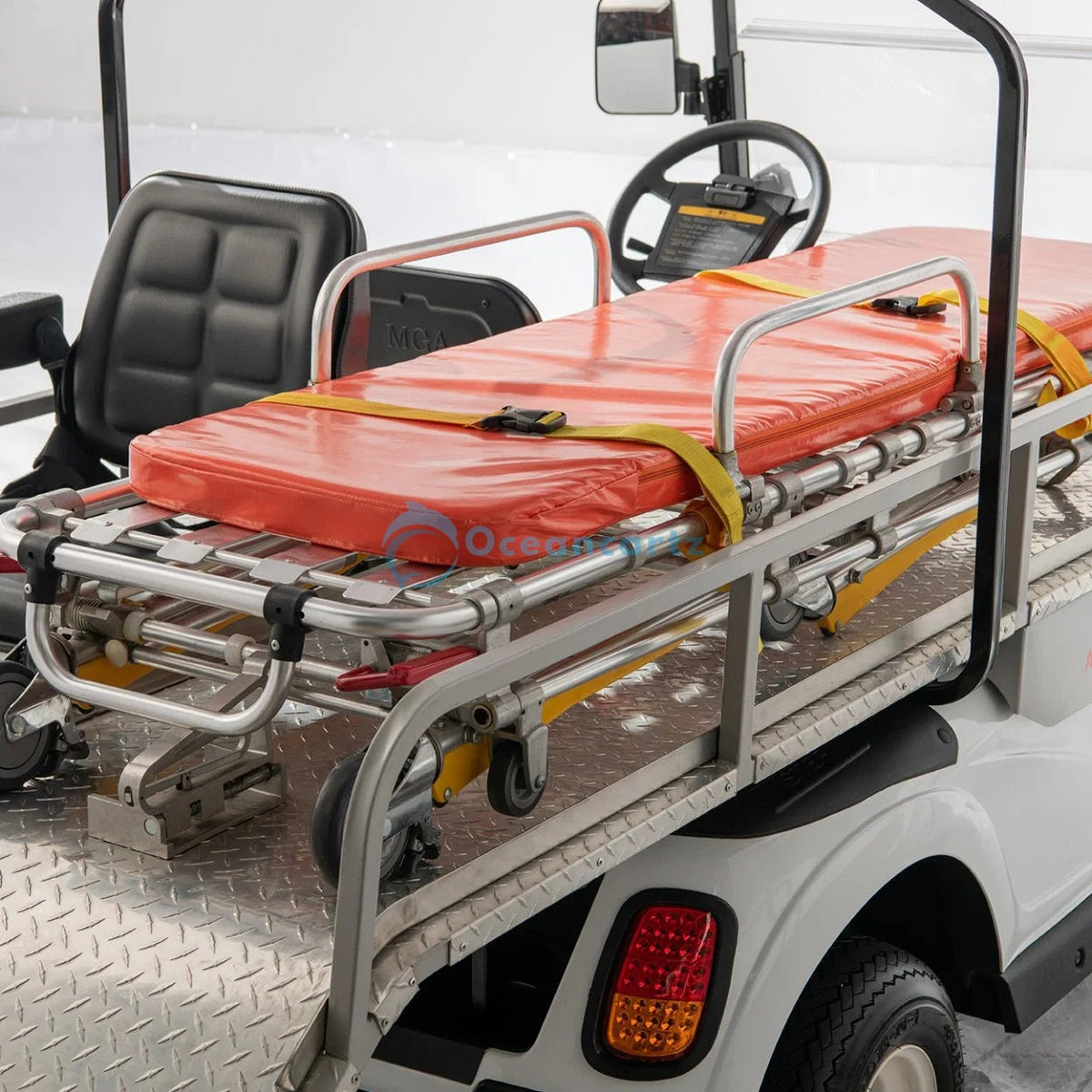

- Integrated full-size spine board stretcher with security belts and hydraulic lift support

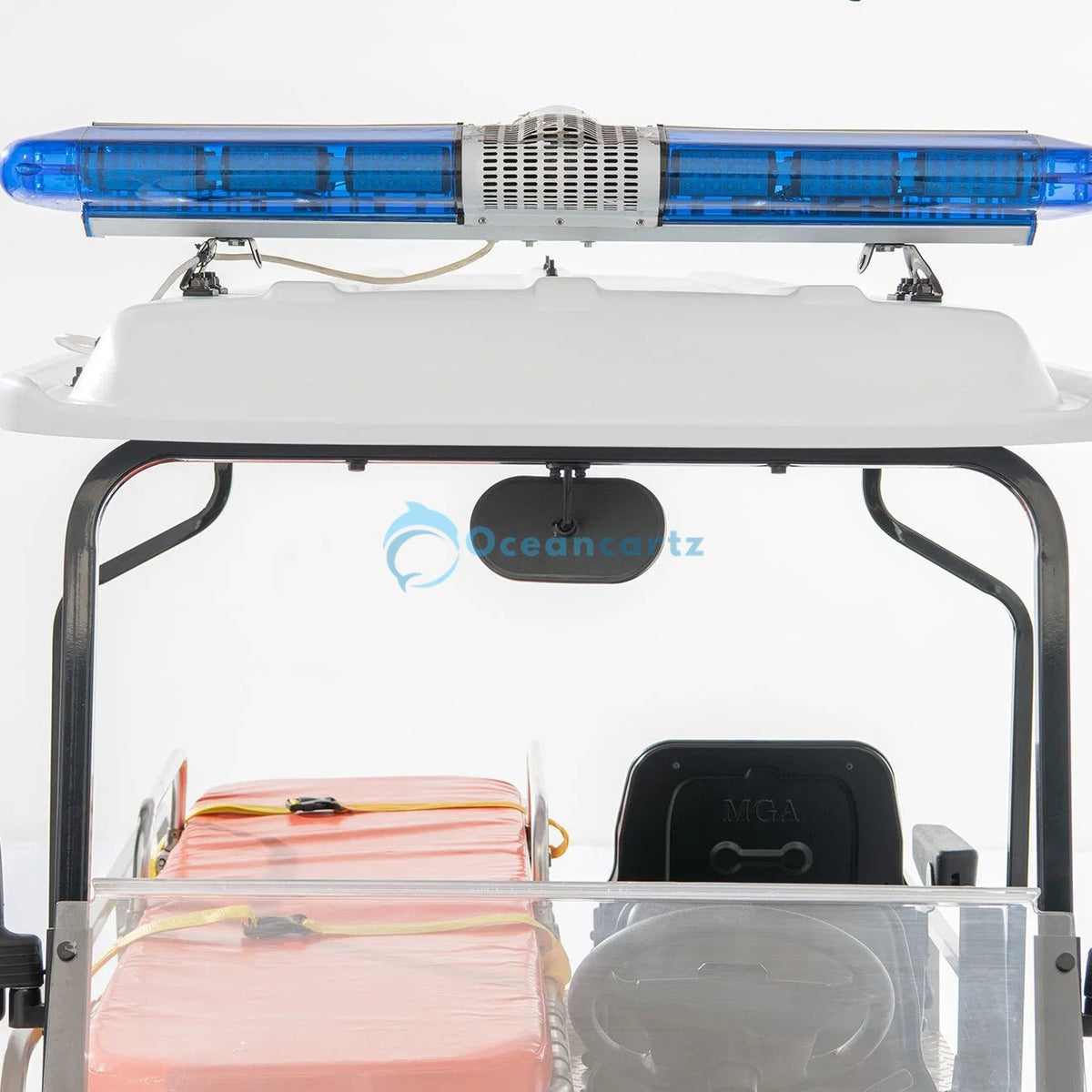

- Equipped with an emergency LED light bar and siren system
- 3.7 kW DC separately excited motor with a 48V battery system
- Maximum operational range of 60 to 80 kilometers per charge
- Reaches maximum speeds of 30 km/h with a 30 percent climbing capacity
- Constructed with an aluminum frame and composite PP body
- Features a 2.8-meter turning radius and a rack-and-pinion steering system

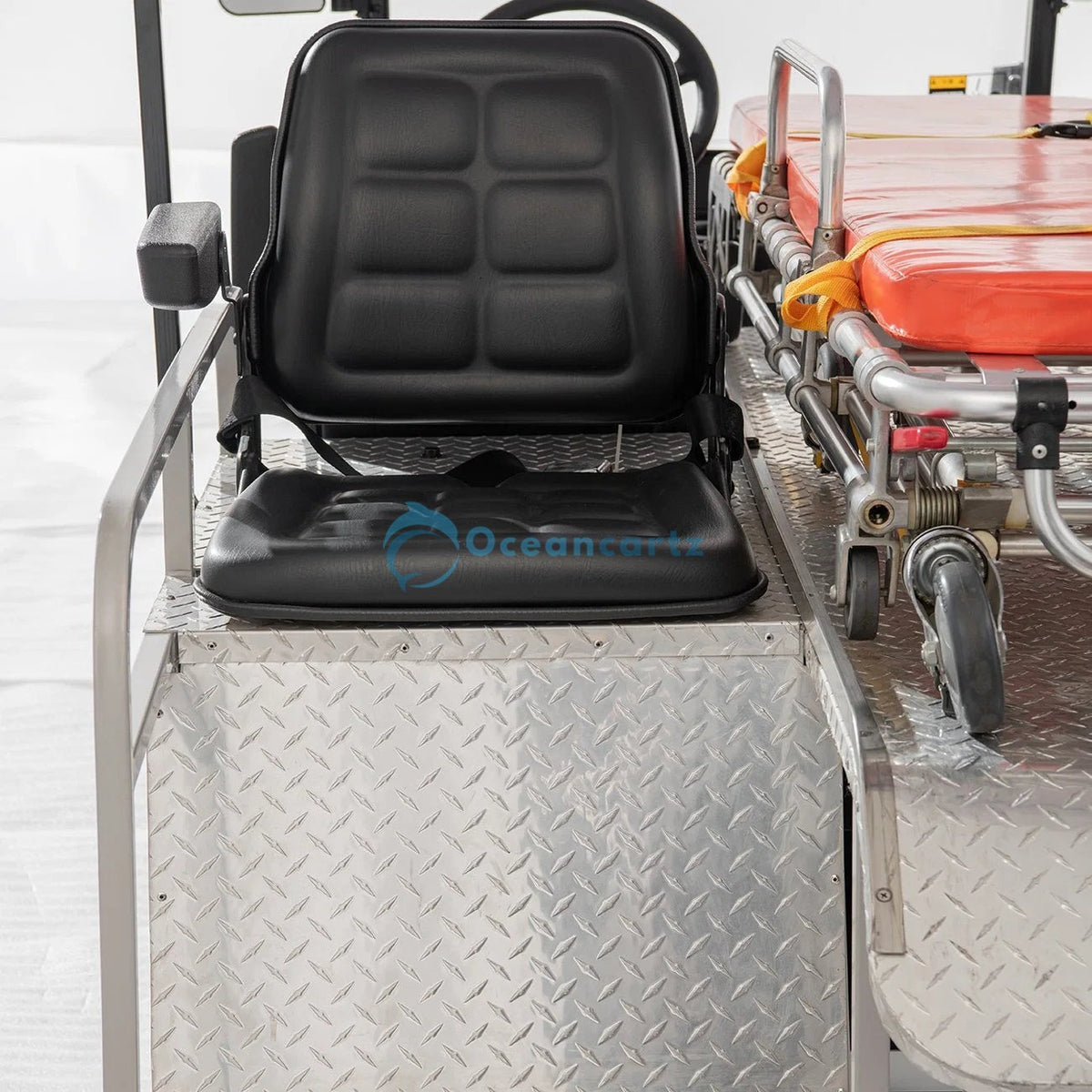

- Seating Capacity: 2 Personnel Seats + 1 Patient Stretcher
- Motor: 3.7 kW DC Separately Excited Motor
- Battery System: 48V (6 x 8V) Maintenance-Free Batteries
- Controller: Electronic Controller System
- Charger: Computer-controlled smart charger
- Specialized Equipment: Emergency Light Bar, Siren, Hydraulic Stretcher Lift, Spine Board
- Chassis/Frame: Aluminum Frame
- Body Material: Composite PP
- Maximum Load Capacity: 360 kg
- Turning Radius: 2.8 meters
- Steering: Rack-and-pinion
- Tires: 18x8.50-8

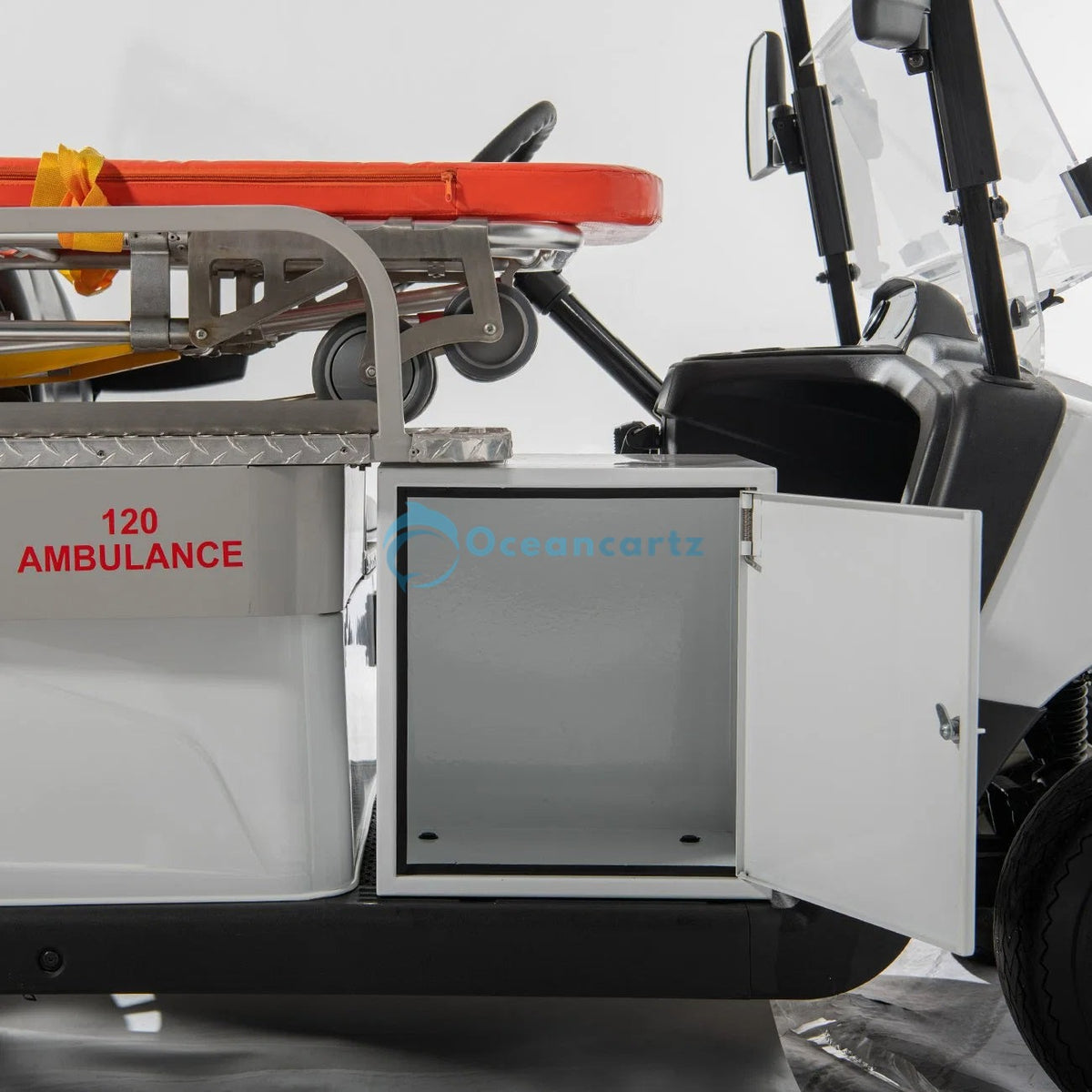

- Storage: Dedicated gear storage compartments
- Top Speed: 30 km/h
- Range per Charge: 60–80 km
- Maximum Climbing Ability: 30 percent
- Braking System: Rear Drum Brake + Electromagnetic Parking Brake
- Acceleration Control: Stepless speed control system
- Front Suspension: MacPherson Independent Suspension
- Rear Suspension: Hydraulic shocks
- Operational Noise: Electric motor minimizes noise during operation

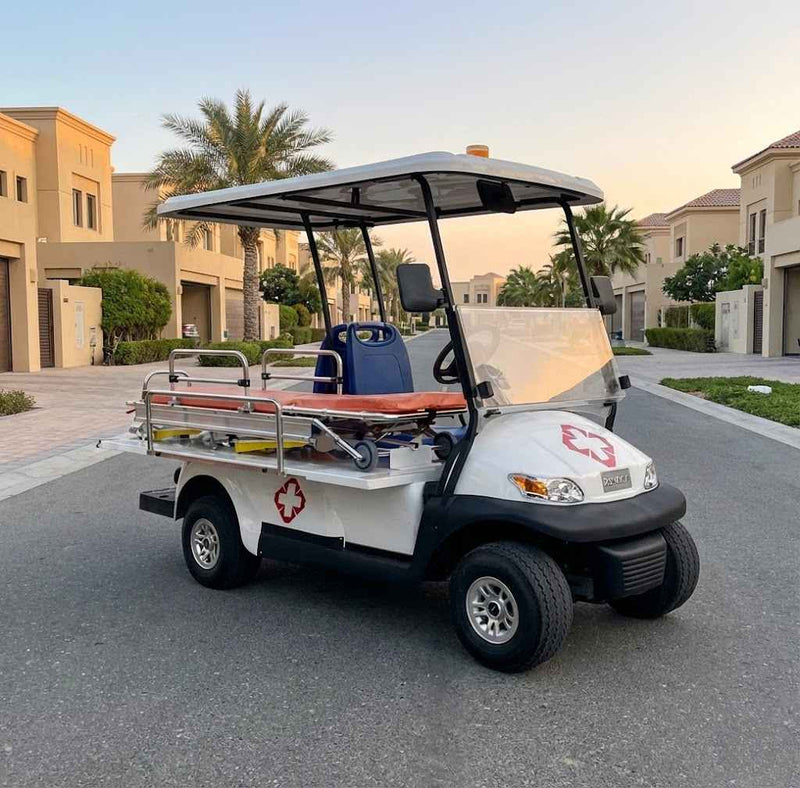

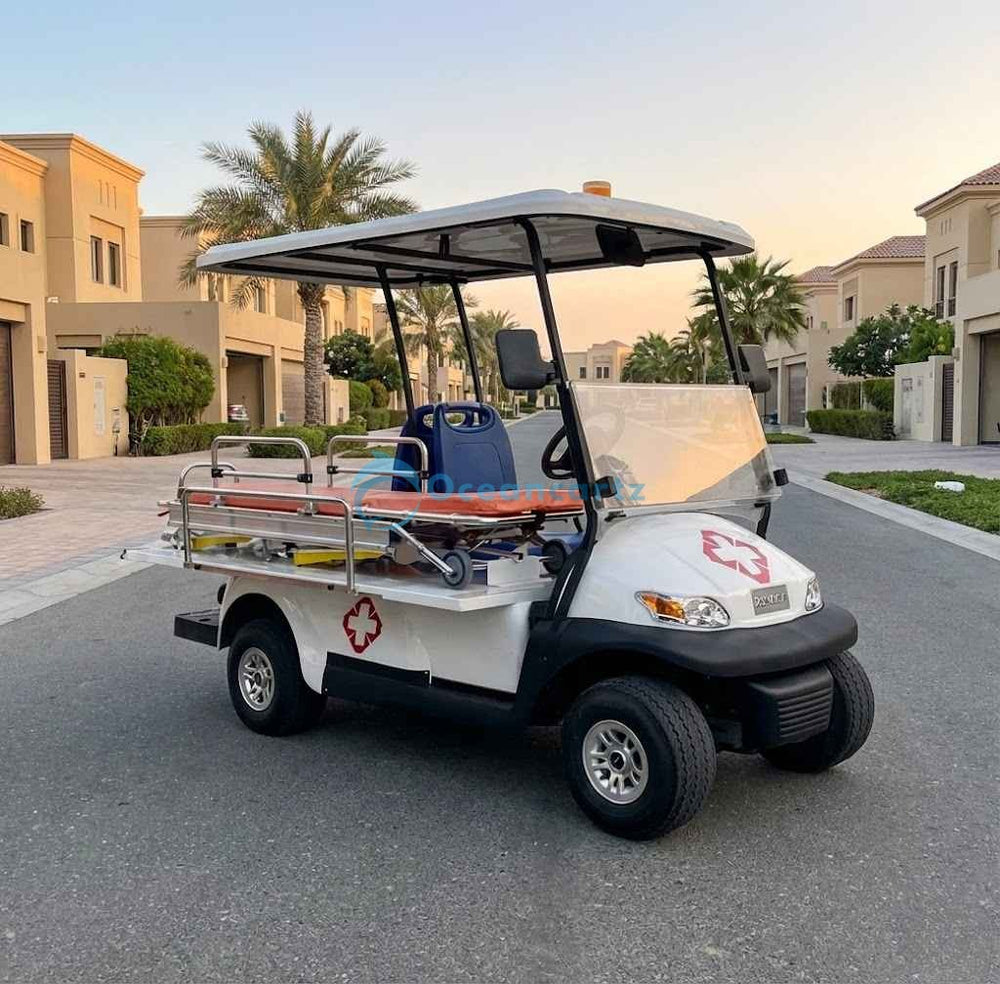

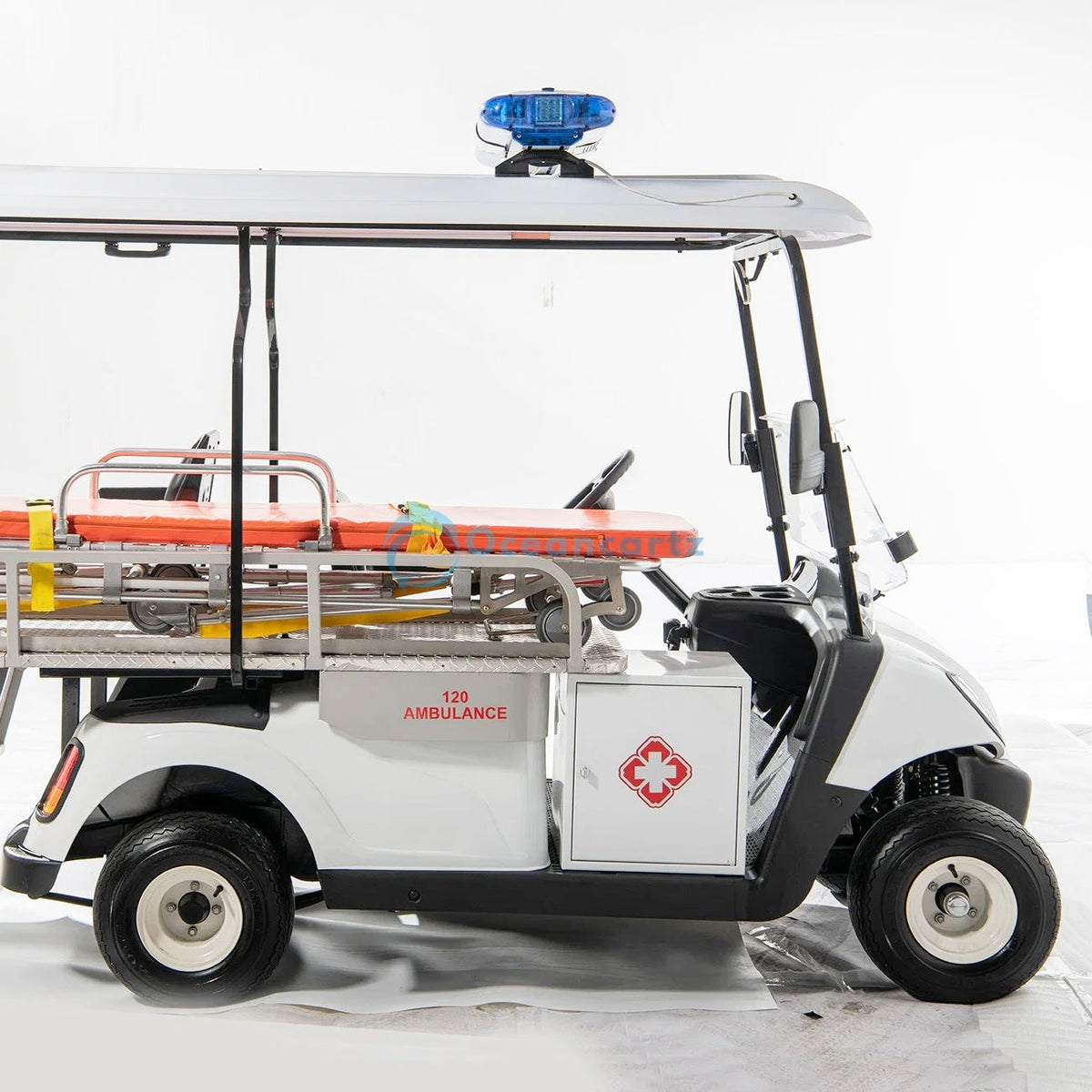

This Oceancartz electric utility vehicle is constructed for medical response and personnel transport. It is equipped with a full-size spine board stretcher, a hydraulic lift support system, an emergency LED light bar, and a siren. The 3.7 kW DC motor and 48V battery system facilitate a 60 to 80 kilometer operating range, a top speed of 30 km/h, and a 30 percent climbing ability. The vehicle supports a maximum load of 360 kg. Structural components include an aluminum frame, a composite PP body, a MacPherson independent front suspension, and rear hydraulic shocks. Operational mechanisms consist of a stepless speed control system, rack-and-pinion steering with a 2.8-meter turning radius, rear drum brakes, and an electromagnetic parking brake. A computer-controlled smart charger is included for battery management.
- 5 Years Battery Warranty
- 2 Year Motor and Controller Warranty
- 1 Year On-Site Free Service
For exact warranty details, please contact us. We will send you a quotation specifying the exact warranty.
Frequently Asked Questions
Oceancartz 2-Passenger Electric Utility Golf Cart with Patient Stretcher, 3.7 kW DC Motor, and 48V Battery System
How does the patient stretcher system work on the Oceancartz medical golf cart?
Can the Oceancartz emergency golf cart handle hills and long shifts at large venues?
Is this Oceancartz electric golf cart agile enough to move through crowds and tight hallways?
What emergency signaling and safety equipment are included with the Oceancartz response vehicle?
How durable is the build quality and what are the maintenance requirements for this Oceancartz model?
